DCV45 Monoblock Directional Control Valve

2023-05-31

DCV directional control valve is designed for high pressure hydraulic system such as drilling machine, sanitation, etc.

·Auxiliary valve:over-load valve, anti-cavitation valve,combined valve, etc.(not for DCV20-45)

·Control type:manual,joystick,cable,pneumatic,solenoid,electro-pneumatic,electro-hydraulic,etc.

·Structure: monoblock, sectional.

·Carry-over port as hydraulic source for other parts



DCV45 Monoblock Directional Control Valve

Nominal flow rate 45 L/min 11.8 US GPM
Max pressure 350bar 5076 psi
operating range 15~75 mm²/s 15~75 cst
Viscosity min 12 mm²/s 12 cst
max 400 mm²/s 400 cst
Ambient temperature range -40°~80℃ -40°~176°F
Structure monoblock:1~8 sections

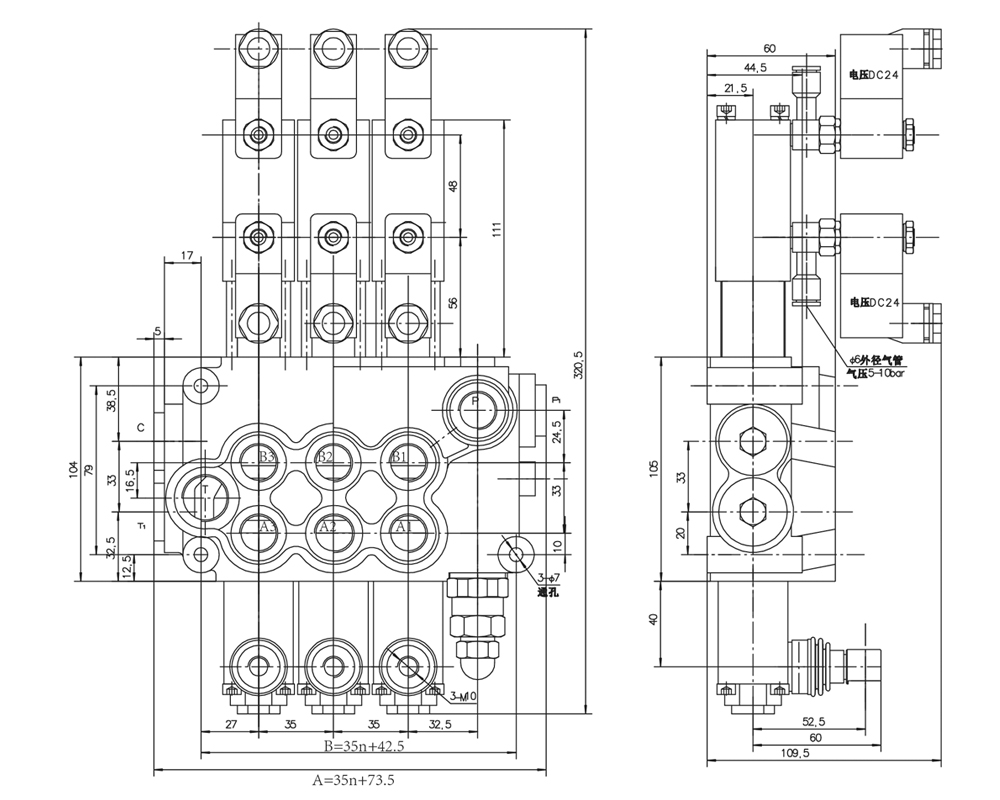

Dimension

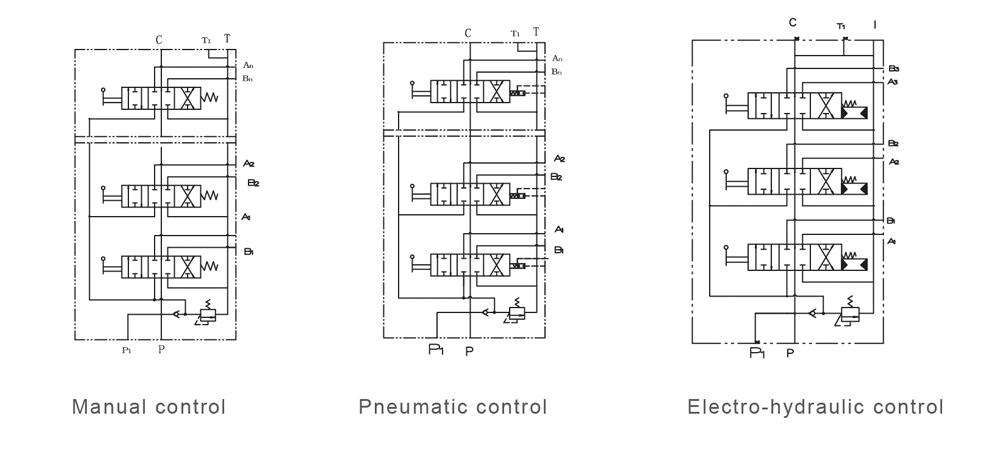

Hydraulic Schema
