HDCF Series Directional Control Valve
HDCF series valve is developped independently by HANJIU,it can be used in agricultural,sanitation,and construction machines,with a built-in single direction lock and anti-pollution direct-action relief valve.
Specifications
| Model | HDCF50 | HDCF10 |
| Nom.Dia. | 6mm | 10mm |
| Rated flow | 50 L/min | 100 L/min |
| Working pressure | 20Mpa | 20Mpa |
| Allowed back pressure | 3Mpa | 3Mpa |
| Oil Temp. | -20~80℃ | -20~80℃ |
HDCF50 solenoid directional valve

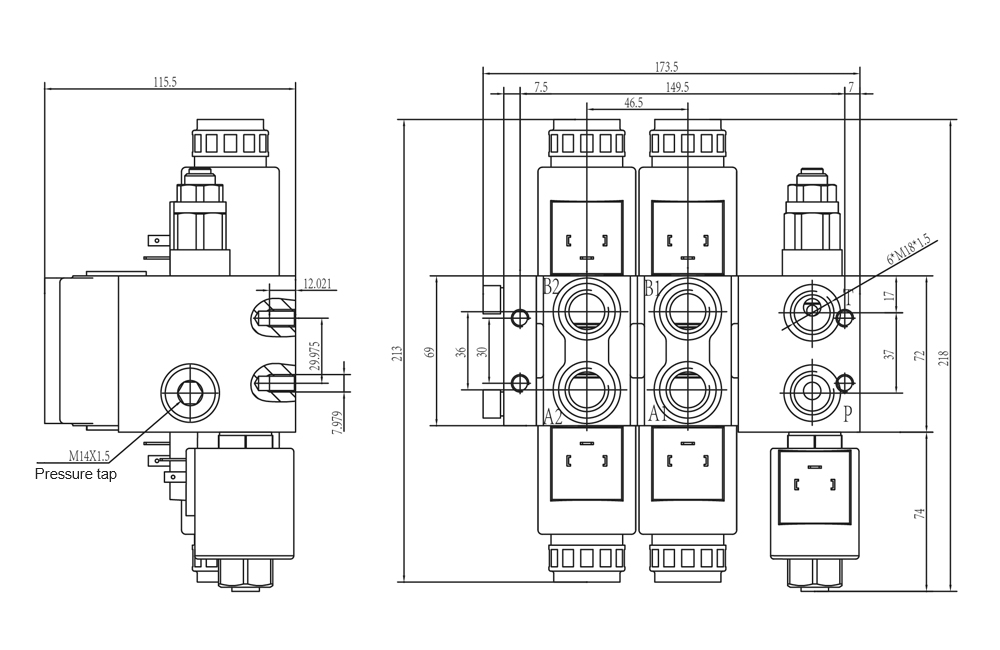

Dimension

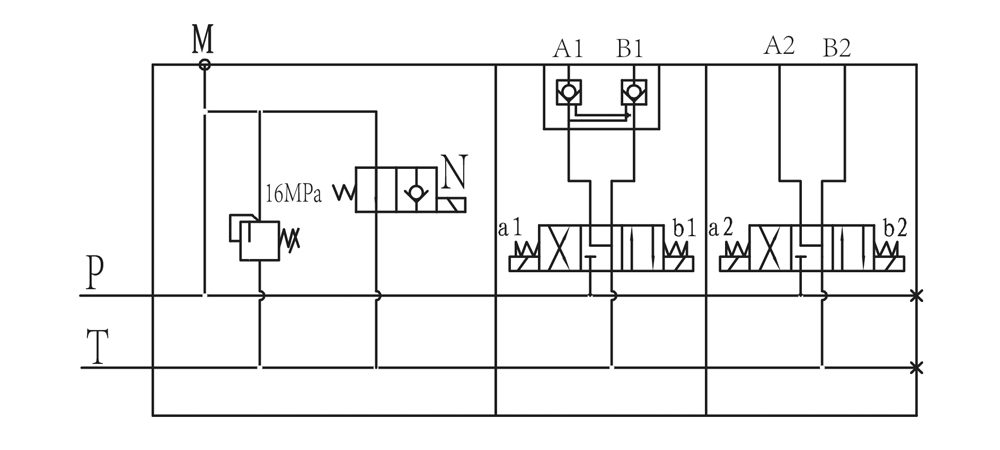

Hydraulic Schema
