Hydraulic Components in Horizontal Directional Drilling (HDD) Rigs
Horizontal directional drilling (HDD) is a complex process that relies heavily on hydraulic systems to perform various functions. Here's a breakdown of the key hydraulic components involved
Core Hydraulic Components
Hydraulic Power Unit (HPU) The heart of the system, providing the necessary hydraulic power. It typically consists of a diesel engine or electric motor driving a hydraulic pump.
Hydraulic Pumps These generate the high-pressure hydraulic fluid required for various operations. Piston pumps are commonly used due to their high-pressure capabilities and efficiency.
Hydraulic Cylinders Used for various functions like extending and retracting the drill rod, controlling the mud pump, and operating the pipe loader.

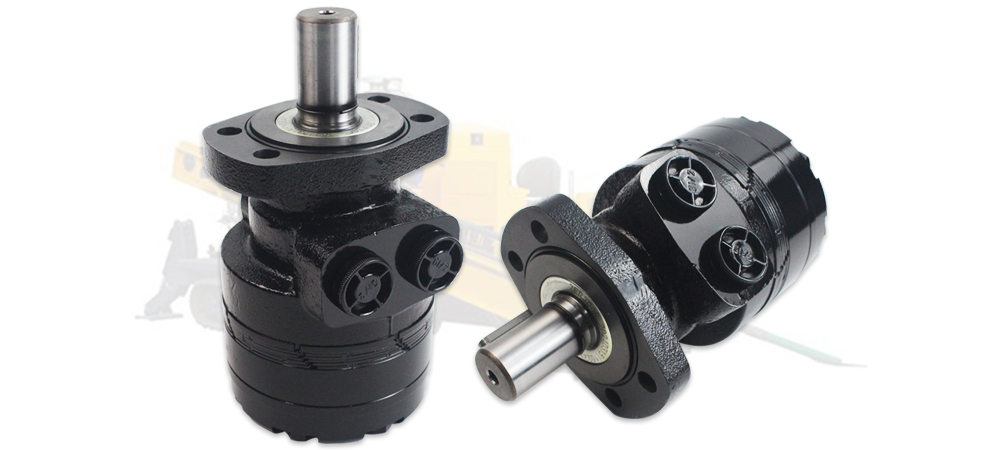

Hydraulic Motors Power the rotation of the drill head or mud pumps.
Hydraulic Valves Control the flow and direction of hydraulic fluid to different components.
Hydraulic Accumulators Store hydraulic energy to cushion pressure spikes and provide emergency power.
Hydraulic Oil The fluid medium that transmits power throughout the system.
Hydraulic Filters Remove contaminants from the hydraulic oil to protect components.
Hydraulic Hoses and Fittings Connect the various components of the hydraulic system.
Specific Applications of Hydraulic Components
Drill Rod PushPull Hydraulic cylinders control the extension and retraction of the drill rod.
Mud Pump Hydraulic motors power the mud pumps to circulate drilling fluid.
Pipe Loader Hydraulic cylinders and motors operate the pipe loader for handling drill pipes.
Steering System Hydraulic cylinders or motors control the steering mechanism to guide the drill head.
Challenges in HDD Hydraulics
Harsh operating conditions Drilling rigs face exposure to mud, dirt, and extreme pressures.
High-pressure requirements Hydraulic systems must withstand high pressures generated during drilling.
Reliability Equipment downtime can be costly, so components must be reliable.
Maintenance Regular maintenance is crucial to prevent breakdowns and ensure optimal performance.
hydraulic components in a horizontal directional drilling rig
Would you like to focus on a specific component or aspect of HDD hydraulic systems
I can provide more detailed information or troubleshooting tips.
