Orbit motor working principle

2024-09-14

Orbital Hydraulic Motor How It Works

An orbital hydraulic motor is a type of gear motor that converts hydraulic energy into mechanical rotational energy. Its unique design allows for high torque output at low speeds, making it ideal for various heavy-duty applications.



Key Components

Rotor A star-shaped inner gear.

Stator A gear with an internal tooth form that matches the rotor.

Working Principle

Hydraulic fluid input High-pressure hydraulic fluid enters the motor.

Fluid distribution The fluid is distributed around the rotor and stator.

Rotor rotation The pressure of the fluid forces the rotor to orbit within the stator.

Torque generation As the rotor orbits, it generates torque, which is transmitted to the output shaft.

Fluid output The used hydraulic fluid exits the motor.

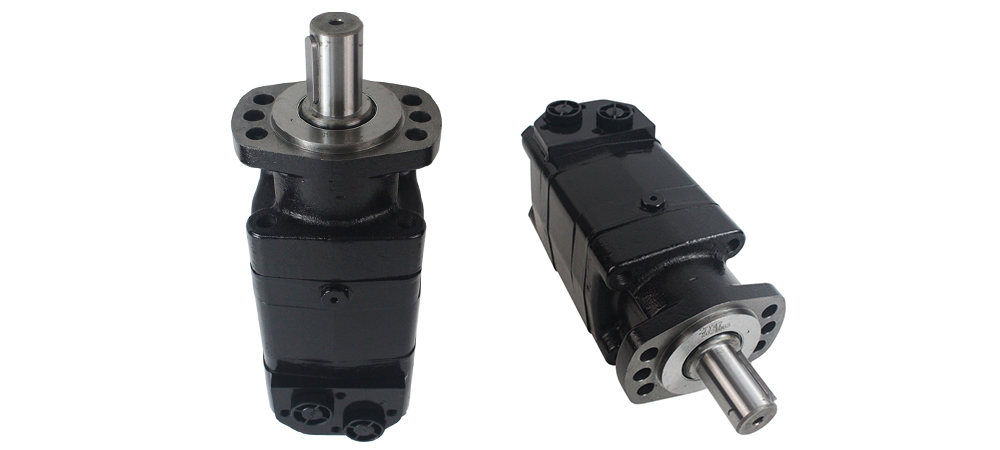

orbital hydraulic motor working principle

Advantages of Orbital Hydraulic Motors

High starting torque Ideal for heavy loads.

Smooth operation Consistent output without pulsations.

Compact design Efficient use of space.

Reversible Can operate in both clockwise and counterclockwise directions.

Wide speed range Versatile for various applications.

Applications of Orbital Hydraulic Motors

Construction equipment Excavators, cranes, drilling rigs

Agricultural machinery Tractors, harvesters

Industrial machinery Presses, conveyors, mixers

Marine applications Winches, steering systems

Mobile equipment Forklifts, aerial work platforms

Would you like to know more about specific applications or how to select the right orbital hydraulic motor for your project
