Orbital Hydraulic Motor How It Works
An orbital hydraulic motor is a type of gear motor that converts hydraulic energy into mechanical rotational energy. Its unique design allows for high torque output at low speeds, making it ideal for various applications.
Key Components
Rotor A star-shaped inner gear.
Stator A gear with an internal tooth form that matches the rotor.
Working Principle
Hydraulic fluid input High-pressure hydraulic fluid enters the motor.
Fluid distribution The fluid is distributed around the rotor and stator.
Rotor rotation The pressure of the fluid forces the rotor to orbit within the stator.
Torque generation As the rotor orbits, it generates torque, which is transmitted to the output shaft.
Fluid output The used hydraulic fluid exits the motor.

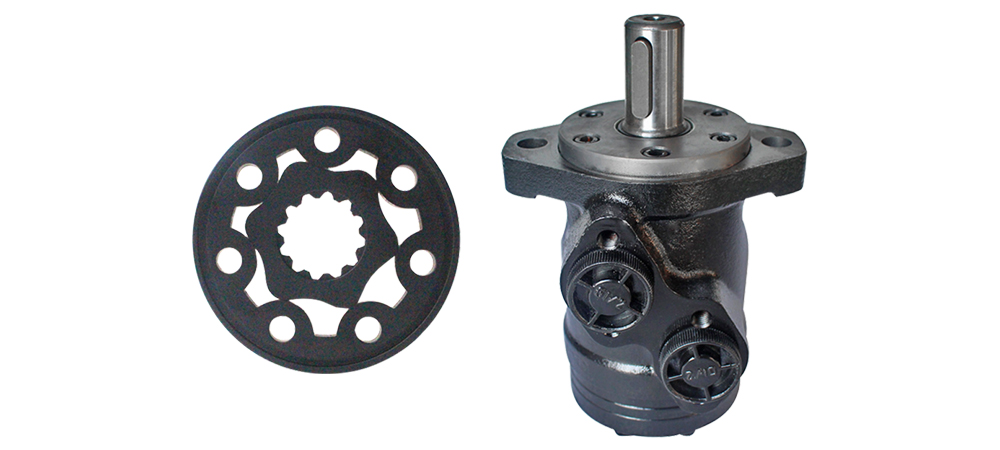

orbital hydraulic motor working principle
Advantages of Orbital Hydraulic Motors
High starting torque Ideal for heavy loads.
Smooth operation Consistent output without pulsations.
Compact design Efficient use of space.
Reversible Can operate in both clockwise and counterclockwise directions.
Wide speed range Versatile for various applications.
Applications of Orbital Hydraulic Motors
Construction equipment Excavators, cranes, drilling rigs
Agricultural machinery Tractors, harvesters
Industrial machinery Presses, conveyors, mixers
Marine applications Winches, steering systems
Mobile equipment Forklifts, aerial work platforms
Would you like to know more about specific applications or how to select the right orbital hydraulic motor for your project
