TE 0080 Hydraulic motor adapt the advanced Geroler gear set designed with high speed distribution flow and high pressure, and have good stability in low speed , and can keep high volume efficiency. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic features:
* Advanced manufacturing devices for the Geroler gear set, which use low pressure
of start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in needle roller bearings that permit high axial and radial
forces. The case can offers capacities of high pressure and high torque in the wide of
applications.
* Advanced design in high speed distribution flow, which can automatically
compensate in operating with high volume efficiency and long life , provide smooth and
reliable operation.
* Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster
than shaft speed. It make the distribution in a high precision reduces life-cycle cost,
maintain high volume efficiencies and can run very smoothly at low speed, gear box not
required.
Main Specification
| Geometric displacement (cm3/rev.) | 81.3 | |
| Max. speed (rpm) | cont. | 543 |
| int. | 689 | |
| Max. torque (N•m) | cont. | 157 |
| int. | 215 | |
| Max. output (kW) | cont. | 8.8 |
| int. | 14.4 | |
| Max. pressure drop(MPa) |
cont. | 14 |
| int. | 19 | |
| peak | 20 | |
| Max. flow (L/min) | cont. | 45 |
| int. | 57 | |
* Continuous pressure:Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

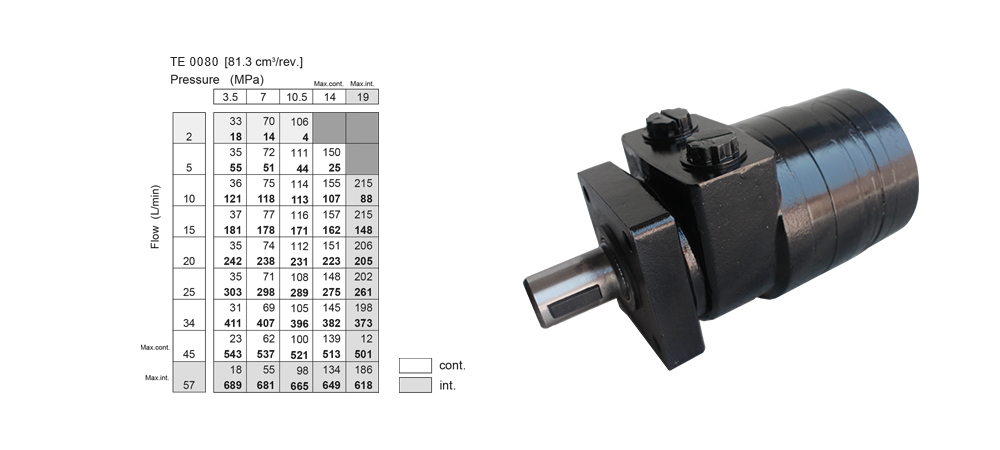

Performance Data
